P0455: Evaporative Emission System Leak Detected (Large Leak)
Title: SAE J2012 generic definition. Manufacturer-specific definitions and enhanced codes can differ; check service information for the exact vehicle.
What P0455 means
The EVAP leak test found a large leak, or no vacuum or pressure could be built in the system at all.
What sets it
During the EVAP test the system is sealed and vacuum or pressure is applied. If the system can't reach the expected level, the ECM sets a large-leak code. There is no single published hole size for "large": it is a manufacturer-defined gross-leak or no-flow condition.
Symptoms
- Light often appears soon after refueling
- Fuel smell possible
- Inspection failure
Is it safe to drive?
General guidance, not a guarantee: Generally safe to drive, but check right away for a missing cap or disconnected hose, and look for liquid fuel leaks. If in doubt, have it towed and diagnosed.
Common causes
Listed roughly from most to least common in general practice. The real order varies by vehicle, mileage and history.
- Gas cap missing, loose or wrong part
- Disconnected or split EVAP hose
- Vent valve stuck open
- Purge valve stuck closed (no test vacuum on some designs)
- Cracked canister or filler neck

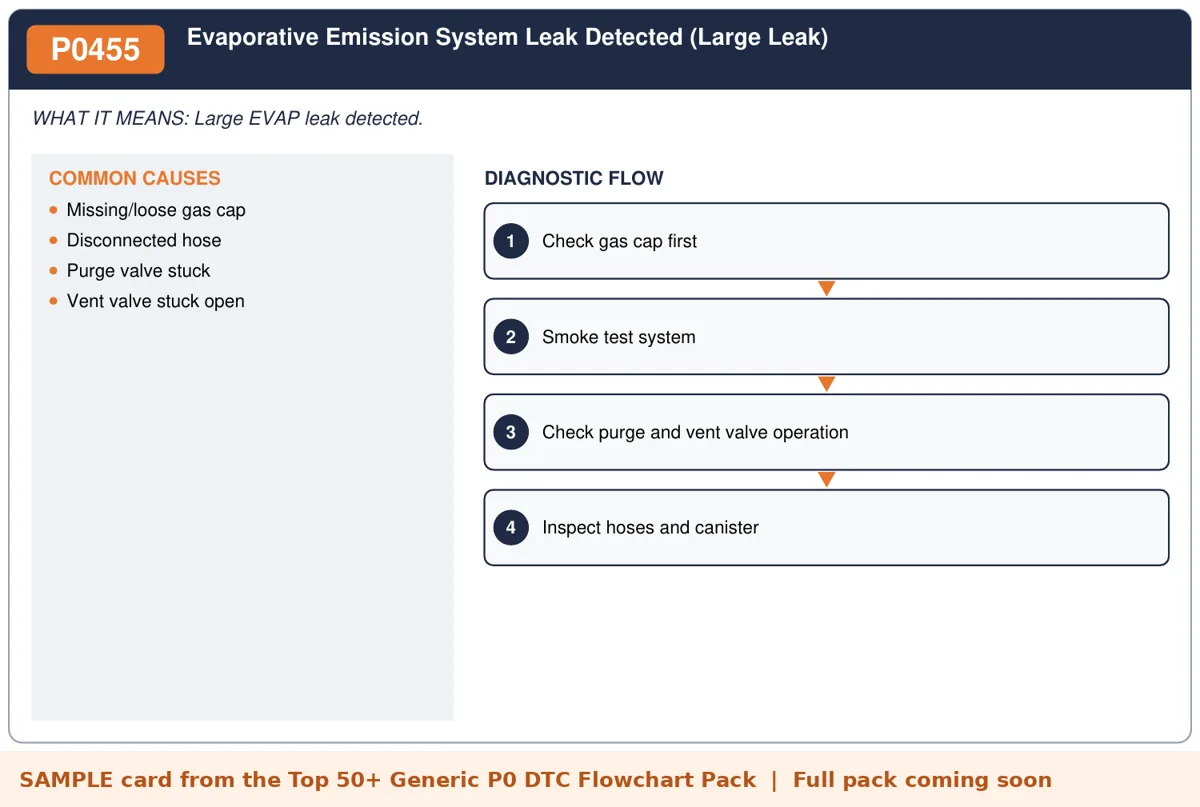

Test before you replace: diagnostic sequence
General guidance only. Always follow the vehicle manufacturer's service information, specifications and safety procedures. Any figures below are general guidelines that defer to the manufacturer's specification.
- Check that the cap is present, the correct part and fully tightened. Note whether the code appeared right after refueling.
- Visually inspect the EVAP hoses at the engine, along the frame and at the canister.
- Command the vent valve closed and confirm it seals. A stuck-open vent is a common large-leak cause.
- Command purge and confirm vacuum reaches the tank side during the test (where the design uses engine vacuum).
- Smoke-test the whole system. A large leak usually shows easily.
- Run the EVAP self-test or complete the drive cycle to verify.
Bench note: When a P0455 shows up right after a fill-up, check the cap first. When it keeps coming back with a good cap, test the vent valve.
How-to guides for this code
Related codes
FAQ
Can a loose gas cap cause P0455?
Yes. It is one of the most common causes. Tighten or replace the cap, then give the monitor time to re-run.
How long until the light goes off?
The ECM must re-run the EVAP test and pass it, which can take several drive cycles. EPA notes the light may turn off by itself after a few trips once the problem is fixed.
Is it bad for the engine?
Not directly, but fuel vapor escapes into the air and the vehicle can fail inspection.
Sources
- SAE J2012, Diagnostic Trouble Code Definitions (standard page; code titles only)
- California Code of Regulations, 13 CCR 1968.2, OBD II requirements (via Cornell LII)
- US EPA, "What To Do With the Check Engine Light" (EPA420-F-00-041)
- California Air Resources Board, On-Board Diagnostic (OBD) program
Written with AI assistance and reviewed for accuracy; not a substitute for OEM service information. Shop Docs Studio is not affiliated with SAE, EPA, CARB or any vehicle manufacturer.
