P0172: System Too Rich (Bank 1)
Title: SAE J2012 generic definition. Manufacturer-specific definitions and enhanced codes can differ; check service information for the exact vehicle.
What P0172 means
The ECM is taking away as much fuel as it is allowed to on bank 1 and the mixture is still rich.
What sets it
The ECM sets P0172 when fuel trims reach the calibrated negative (subtract-fuel) limit for long enough. Rich faults come from extra fuel getting in, or from the ECM being told there is more air than there really is.
Symptoms
- Fuel smell, black smoke or sooty plugs
- Poor fuel economy
- Rough idle, possible misfires
- Catalyst damage over time
Is it safe to drive?
General guidance, not a guarantee: Generally drivable short-term, but a rich condition washes oil off cylinder walls, can dilute engine oil with fuel and overheats the catalyst. Diagnose promptly. If in doubt, have it towed and diagnosed.
Common causes
Listed roughly from most to least common in general practice. The real order varies by vehicle, mileage and history.
- Leaking or dripping injector(s)
- High fuel pressure: faulty regulator or restricted return on return-type systems
- EVAP purge valve stuck open: pulls fuel vapor into the intake at idle
- MAF reading high or a skewed sensor
- Fuel-diluted engine oil feeding vapors through the PCV

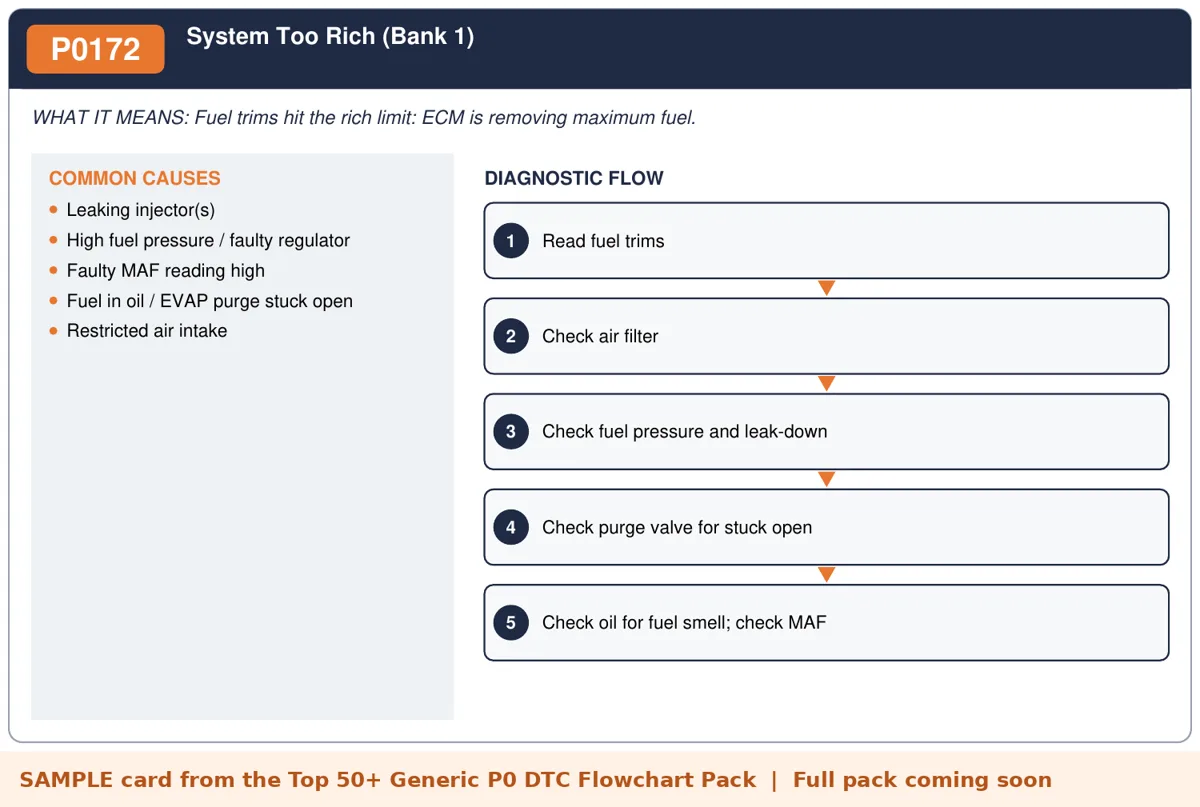

Test before you replace: diagnostic sequence
General guidance only. Always follow the vehicle manufacturer's service information, specifications and safety procedures. Any figures below are general guidelines that defer to the manufacturer's specification.
- Read fuel trims at idle and at about 2,500 rpm. General guideline only: many techs treat combined short-term + long-term fuel trim within roughly ±10% as normal and look harder beyond that. The ECM's own limits are manufacturer-calibrated; use the manufacturer's data.
- Pinch or block the purge line briefly (where safe and accessible) or command the purge valve closed with the scan tool, and watch whether trims recover. If they do, the purge valve is leaking.
- Smell the oil dipstick for fuel. Fuel-diluted oil can feed rich vapor through the PCV.
- Check fuel pressure and pressure leak-down after shutdown against the manufacturer specification. Pressure that drops quickly can point to a leaking injector.
- Check MAF readings against known-good data.
- Inspect plugs for black soot on one cylinder (one leaking injector) or all cylinders (system-wide cause).
- Verify trims return toward normal after repair.
Bench note: A purge valve stuck open is a common cause that people miss. It often brings an EVAP code with it, so check for both together.
How-to guides for this code
Related codes
FAQ
Can a dirty air filter cause P0172?
On modern MAF-based engines a dirty filter rarely causes a rich code on its own, but it is cheap to check. Look at purge, injectors and fuel pressure first.
Why does my oil smell like fuel?
A long-running rich condition or many short cold trips can dilute the oil. Fix the cause and change the oil.
Will a rich condition damage the catalytic converter?
It can overheat and degrade it over time, which is why rich faults should be fixed promptly.
Sources
- SAE J2012, Diagnostic Trouble Code Definitions (standard page; code titles only)
- California Code of Regulations, 13 CCR 1968.2, OBD II requirements (via Cornell LII)
- Generic code title cross-check: obd-codes.com generic code list
Written with AI assistance and reviewed for accuracy; not a substitute for OEM service information. Shop Docs Studio is not affiliated with SAE, EPA, CARB or any vehicle manufacturer.
