P0420: Catalyst System Efficiency Below Threshold (Bank 1)

Title: SAE J2012 generic definition. Manufacturer-specific definitions and enhanced codes can differ; check service information for the exact vehicle.

What P0420 means

The ECM's catalyst test judged bank 1's catalytic converter as not storing and using oxygen well enough.

What sets it

OBD II monitors catalyst efficiency, usually by comparing the upstream and downstream oxygen sensors. A healthy converter stores oxygen, so the downstream sensor stays fairly steady while the upstream one switches. As the converter loses storage capacity, the downstream signal starts to copy the upstream one. When the monitor's calculated result crosses the calibrated threshold, P0420 is stored.

Symptoms

• Usually no drivability symptoms
• Failed emissions inspection
• Possible rotten-egg smell or rattle from a broken substrate

Is it safe to drive?

General guidance, not a guarantee: Usually safe to drive short-term. The danger is the underlying cause: if misfires or a rich condition killed the converter, a new one will fail too. A restricted converter can cause power loss and should be addressed. If in doubt, have it towed and diagnosed.

Common causes

Listed roughly from most to least common in general practice. The real order varies by vehicle, mileage and history.

1. Upstream engine problem that damaged the cat: misfire, rich running, oil or coolant consumption
2. Worn or failed converter
3. Exhaust leak near the sensors: can confuse the monitor
4. Downstream O2 sensor slow or biased: less common than people hope
5. Wrong or low-quality aftermarket converter

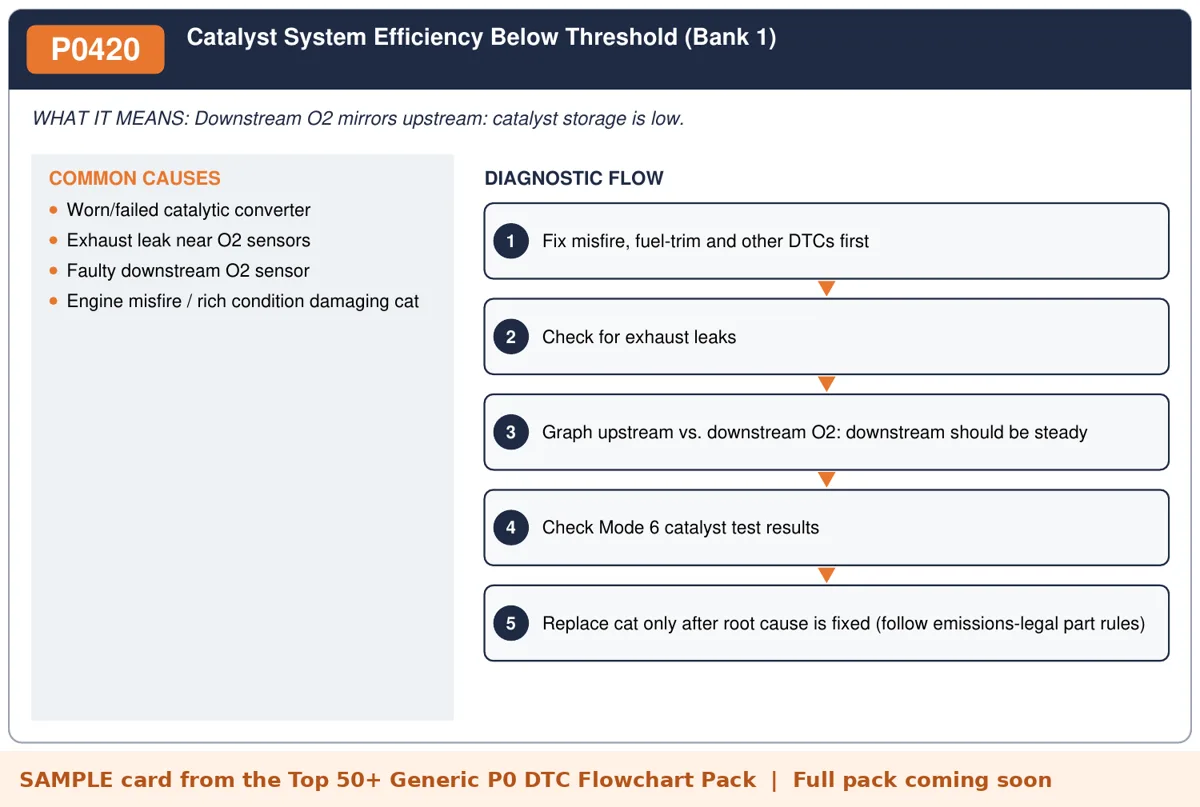

Test before you replace: diagnostic sequence

General guidance only. Always follow the vehicle manufacturer's service information, specifications and safety procedures. Any figures below are general guidelines that defer to the manufacturer's specification.

1. Diagnose and repair every other code first, especially misfires and fuel-trim codes.
2. Check for exhaust leaks before and around both O2 sensors.
3. Graph upstream and downstream O2 together at a steady 2,000-2,500 rpm, warm. A downstream signal that closely copies the upstream suggests low oxygen storage (general guidance; sensor types and strategies vary, and air-fuel ratio sensors look different).
4. Check Mode $06 catalyst monitor results to see how far past the threshold it is.
5. Check for oil burning or coolant loss that could poison the converter.
6. If the converter is condemned, replace it with a legal part for that vehicle and the state (see the EPA and CARB sources below), and record the root cause on the repair order.
7. After repair, complete a drive cycle and confirm the catalyst monitor runs and passes.

Bench note: Never sell a catalytic converter without stating the root cause. If the cause isn't fixed, the replacement converter fails too and comes back to you.

How-to guides for this code

• Using Freeze Frame Data

Related codes

FAQ

Sources

• SAE J2012, Diagnostic Trouble Code Definitions (standard page; code titles only)
• California Code of Regulations, 13 CCR 1968.2, OBD II requirements (via Cornell LII)
• SAE J1979, E/E Diagnostic Test Modes (Mode $06, readiness, freeze frame)
• US EPA, Enforcement discretion for California-approved aftermarket catalytic converters
• US EPA, Tampering Policy (2020), incl. note on the 1986 aftermarket catalyst policy
• US EPA, "OBD: Frequently Asked Questions" (EPA-420-F-02-014)

Written with AI assistance and reviewed for accuracy; not a substitute for OEM service information. Shop Docs Studio is not affiliated with SAE, EPA, CARB or any vehicle manufacturer.
