P0446: Evaporative Emission System Vent Control Circuit
Title: SAE J2012 generic definition. Manufacturer-specific definitions and enhanced codes can differ; check service information for the exact vehicle.
What P0446 means
The canister vent valve (or its circuit) isn't doing what the ECM commands.
What sets it
The vent valve lets fresh air into the charcoal canister during normal driving and closes to seal the system for the EVAP leak test. The ECM sets P0446 when the vent circuit has an electrical fault or when the system doesn't react as expected when the vent is commanded (for example, it can't build test vacuum, or it builds too much). On many vehicles the vent valve sits near the canister under the vehicle, where dirt, water and insects get in.
Symptoms
- Usually no drivability symptoms
- On some vehicles, difficult refueling (pump nozzle clicks off) if the vent is blocked
- Inspection failure
Is it safe to drive?
General guidance, not a guarantee: Generally safe to drive. If refueling is difficult, the vent path is probably blocked; get it checked. If in doubt, have it towed and diagnosed.
Common causes
Listed roughly from most to least common in general practice. The real order varies by vehicle, mileage and history.
- Failed vent solenoid
- Blocked vent filter or vent line: dirt, mud, insect nests
- Wiring or connector damage near the canister
- Fuse or power-feed fault
- ECM control circuit (less common)

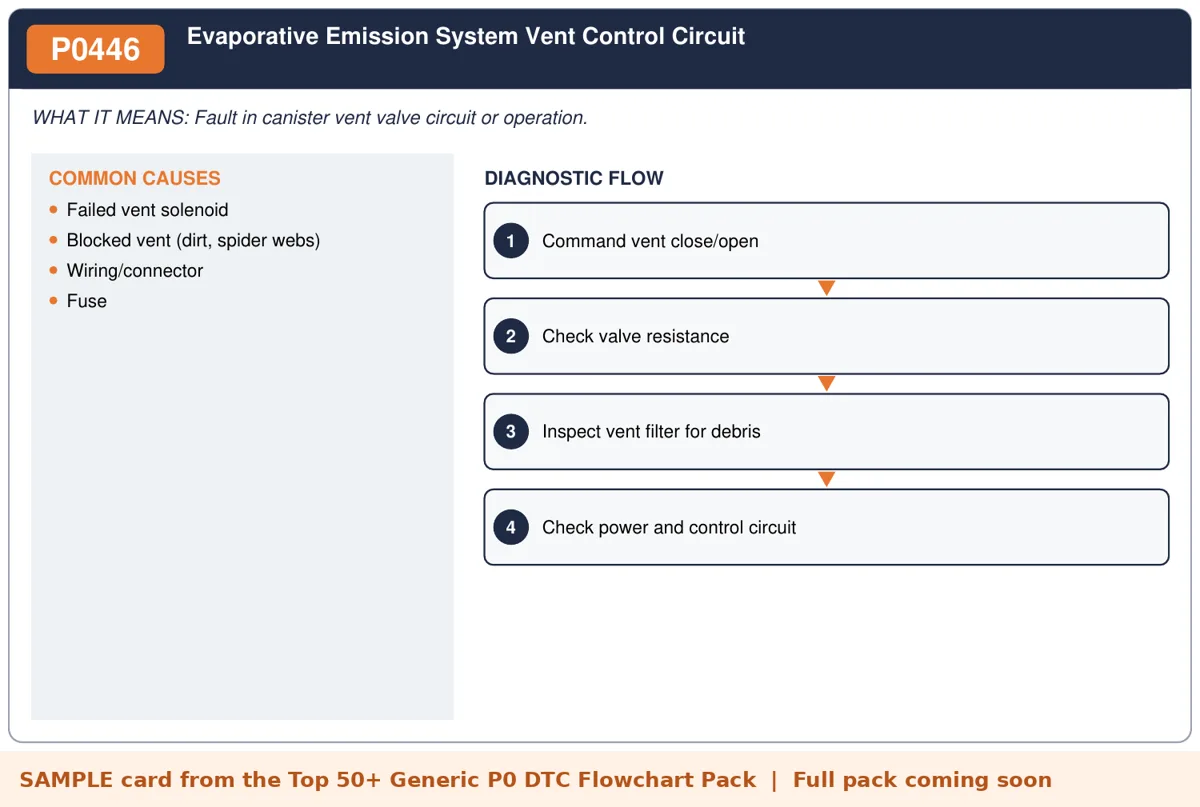

Test before you replace: diagnostic sequence
General guidance only. Always follow the vehicle manufacturer's service information, specifications and safety procedures. Any figures below are general guidelines that defer to the manufacturer's specification.
- Check for other EVAP codes; leak codes and vent codes together often point at the vent valve.
- Inspect the vent valve, filter and line for dirt, water or nests.
- Use the scan tool to command the vent valve closed and open. Listen and feel for the valve clicking, and watch EVAP pressure/vacuum respond where the PID is available.
- Check power and the control circuit at the valve connector per the wiring diagram.
- Measure the solenoid resistance only against the manufacturer's specification.
- After repair, run the EVAP self-test or complete the monitor's enable conditions.
Bench note: A vent valve that tests fine on the bench can still be blocked by debris on the fresh-air side. Inspect the filter and the inlet as well.
How-to guides for this code
Related codes
FAQ
Why is it hard to fill my gas tank?
If the vent side of the EVAP system is blocked, displaced vapor can't escape during refueling and the pump nozzle shuts off early.
Is P0446 a leak?
It's a vent valve or circuit fault rather than a leak, although a stuck-open vent can also cause leak codes.
Where is the vent valve?
Often near the charcoal canister, by the fuel tank or rear axle. Check the service information.
Sources
- SAE J2012, Diagnostic Trouble Code Definitions (standard page; code titles only)
- California Code of Regulations, 13 CCR 1968.2, OBD II requirements (via Cornell LII)
- California Air Resources Board, On-Board Diagnostic (OBD) program
