P0401: Exhaust Gas Recirculation "A" Flow Insufficient Detected
Title: SAE J2012 generic definition. Manufacturer-specific definitions and enhanced codes can differ; check service information for the exact vehicle.
What P0401 means
The ECM commanded EGR flow but didn't see the change it expected.
What sets it
EGR feeds a measured amount of exhaust back into the intake to lower combustion temperatures and NOx. OBD II requires monitoring for low EGR flow. The ECM typically opens the valve under certain conditions and watches for an expected change in manifold pressure, fuel trim, a dedicated EGR temperature or pressure sensor, or valve position. Too little change sets P0401.
Symptoms
- Often none
- Spark knock or pinging under load
- Higher NOx (inspection failure in tailpipe-test areas)
Is it safe to drive?
General guidance, not a guarantee: Generally drivable; repeated spark knock under load can damage an engine over time, so diagnose soon. If in doubt, have it towed and diagnosed.
Common causes
Listed roughly from most to least common in general practice. The real order varies by vehicle, mileage and history.
- Carbon-clogged EGR passages or ports: very common on high-mileage engines
- EGR valve stuck closed
- EGR position or differential-pressure sensor fault
- Vacuum supply or solenoid (older vacuum-operated systems)
- Restricted EGR cooler (where equipped)

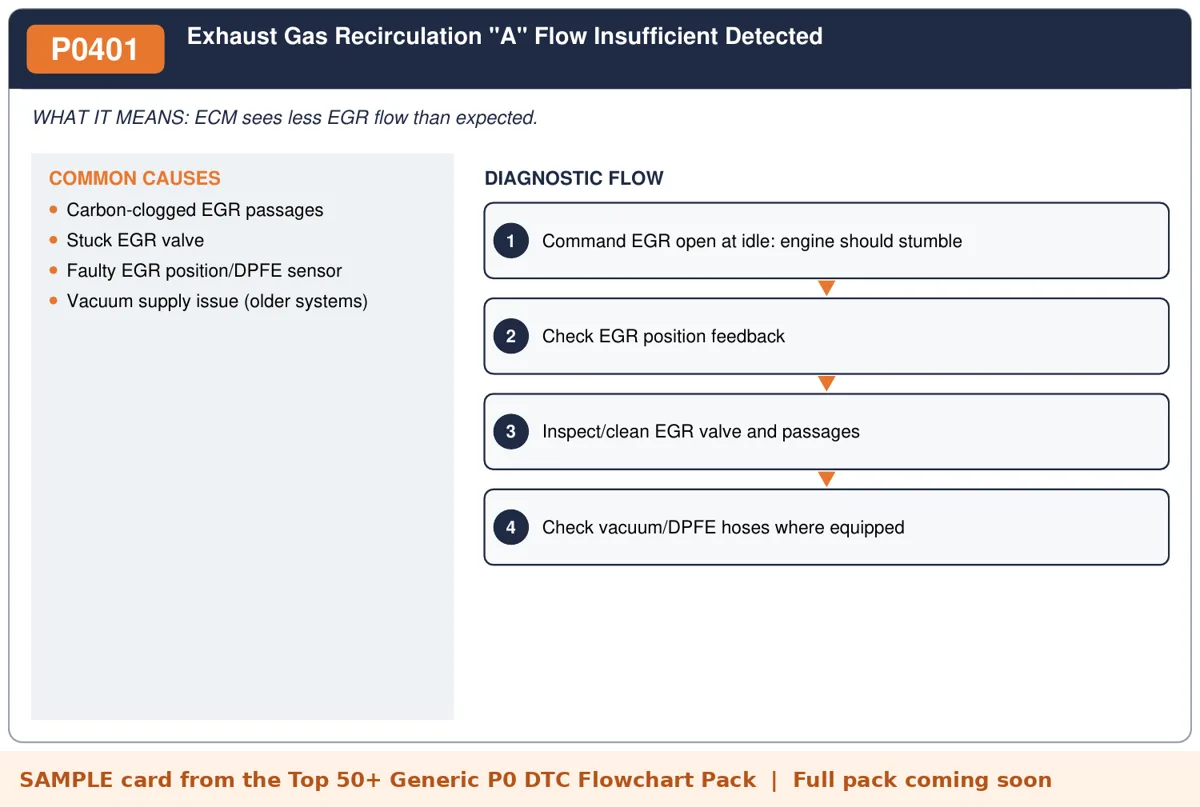

Test before you replace: diagnostic sequence
General guidance only. Always follow the vehicle manufacturer's service information, specifications and safety procedures. Any figures below are general guidelines that defer to the manufacturer's specification.
- Identify the system type for this engine (electronic valve with position sensor, DPFE, vacuum valve) from the service information.
- At warm idle, command the EGR valve open with the scan tool (or apply vacuum on older systems). A clear stumble usually means flow is getting through; no change suggests a restriction.
- Compare commanded versus actual EGR position, where available.
- Remove and inspect the valve and the intake-side passages for carbon, per the manufacturer's procedure.
- Check DPFE hoses and sensor readings where equipped.
- Clean or repair, then verify the EGR monitor runs and passes.
Bench note: If the valve moves when commanded but the engine doesn't react, the passages are blocked with carbon. A new valve won't fix it.
Related codes
FAQ
Is P0401 always the EGR valve?
No. Clogged passages are very common. Command the valve open and see if the engine reacts before buying a valve.
Can I delete the EGR?
No. Removing or disabling emissions equipment on a road vehicle is tampering under the Clean Air Act.
Sources
- SAE J2012, Diagnostic Trouble Code Definitions (standard page; code titles only)
- California Code of Regulations, 13 CCR 1968.2, OBD II requirements (via Cornell LII)
- US EPA, Tampering Policy (2020), incl. note on the 1986 aftermarket catalyst policy
Written with AI assistance and reviewed for accuracy; not a substitute for OEM service information. Shop Docs Studio is not affiliated with SAE, EPA, CARB or any vehicle manufacturer.
