P0325: Knock Sensor 1 Circuit (Bank 1 or Single Sensor)
Title: SAE J2012 generic definition. Manufacturer-specific definitions and enhanced codes can differ; check service information for the exact vehicle.
What P0325 means
The ECM sees an electrical fault in the circuit of knock sensor 1, the sensor it uses to listen for detonation.
What sets it
Knock sensors are vibration sensors bolted to the engine block or head. The ECM uses their signal to retard spark timing when it detects knock. The circuit code sets when the signal is missing, out of range or electrically implausible. With knock sensing disabled, many ECMs retard timing as a precaution, which can cost power and fuel economy.
Symptoms
- Often none besides the light
- Reduced power or fuel economy (protective spark retard)
- Pinging under load on some vehicles
Is it safe to drive?
General guidance, not a guarantee: Usually drivable gently. Avoid heavy loads and use the fuel grade the manufacturer specifies, because the engine may not be able to protect itself from knock. If in doubt, have it towed and diagnosed.
Common causes
Listed roughly from most to least common in general practice. The real order varies by vehicle, mileage and history.
- Damaged harness or connector: knock sensor wiring is often routed under the intake manifold and suffers from heat and coolant leaks
- Failed sensor
- Sensor not torqued to specification: a loose or over-tightened sensor changes its output
- Corrosion from coolant or water in the valley

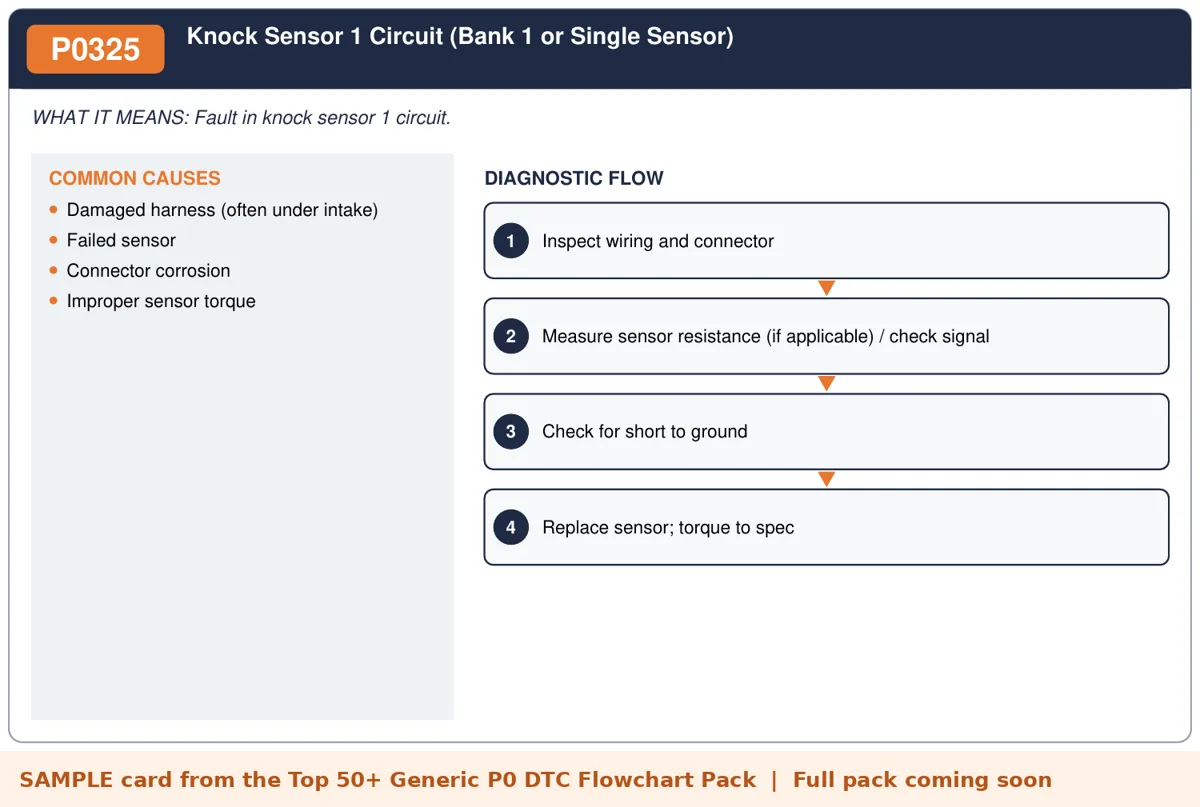

Test before you replace: diagnostic sequence
General guidance only. Always follow the vehicle manufacturer's service information, specifications and safety procedures. Any figures below are general guidelines that defer to the manufacturer's specification.
- Check for related codes (other knock sensors, sensor ground circuits).
- Inspect the accessible harness and connector, and look for signs of coolant leaking into the area where the sensor sits.
- Check the circuit per the wiring diagram: continuity, short to ground or voltage, and the shield or ground if used.
- Check the sensor signal with a scope while lightly tapping near the sensor, if the manufacturer's procedure allows it. A responsive signal suggests the sensor can generate output.
- Measure sensor resistance only if the manufacturer gives a specification. Many piezoelectric sensors are not checked by resistance.
- When replacing, follow the manufacturer's mounting and torque specification exactly, and replace damaged harness sections.
Bench note: Before you quote it, find out where the sensor sits. Some are under the intake manifold, and that changes the labor time a lot.
Related codes
FAQ
Can a knock sensor code cause low power?
Yes. Many ECMs retard spark timing when they can't trust the knock sensor, which reduces power and economy.
Is it always the sensor?
No. Harness damage is very common, especially on sensors under the intake. Check the wiring before replacing the sensor.
Does the sensor need a torque spec?
Yes. Knock sensors are torque-sensitive. Use the manufacturer's specification.
